Non-Contacting Technology
Vert-X® Non-Contacting Rotary
Sensor Technology

Novotechnik’s Vert-X rotary sensor technology is setting the new standard for extended life in non-contacting rotary position transducer/sensor applications with a life expectancy up to 350 million movements.

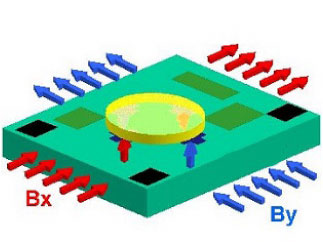

This vertical Hall sensor technology uses a unique, cross-shaped structure to enable magnetic field components to be measured in both the x and y directions.

Sinusoidal and cosinusoidal signals are transmitted to an embedded microprocessor, which uses the ratio between the sinusoidal and cosinusoidal parts to perform the angle calculation.

Click on the PDF icon below to download complete information.

NOVOSTRICTIVE® Non-Contacting Linear Magnetostrictive Technology

Novotechnik’s NOVOSTRICTIVE® sensor technology sets the new standard for linearity with two micrometer fixed resolution, 16 kHz update rate and extended life.

This new technology is flexible and supports multiple simultaneously-moving pick-up markers with the same sensor.

Novostrictive sensors can use the advanced Novotechnik DyMoS™ high speed data interface.

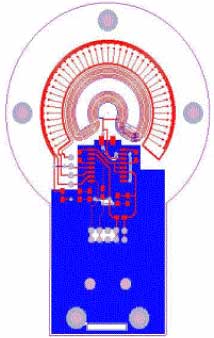

INDRES® Non-Contacting Lineary or Rotary Technology

Novotechnik's proprietary INDuctive-RESistive technology is ideal for demanding automotive applications. INDRES has excellent EMC characteristics and is unaffected by stray magnetic fields.

INDRES is implemented as a mixed-mode ASIC, with signal processing entirely in the analog domain, thus preserving the excellent resolution of inductive sensors and allowing for high dynamic response often lost with digital-core technologies.

The INDRES ASIC is validated from -40° to +150°C.

Click on the PDF icon below to download complete information.
